Description:

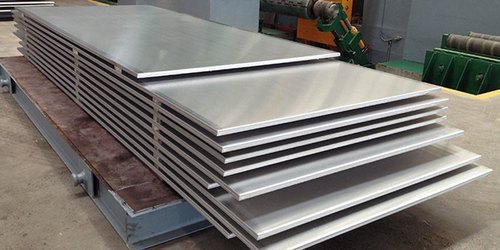

Mild Steel Plates are widely used in heavy fabrication, base plates,
gussets,
stiffeners, and machine structures. They offer excellent weldability,
good
ductility, and moderate strength suitable for general and structural
engineering works.
| Parameter | Specification |
|---|---|
| Thickness (mm) | 3 – 50 |
| Width (mm) | 1250 / 1500 / 2000 |
| Length (mm) | 2500 – 6300 |
| Grade / Standard | IS 2062 E250 / E350 / E410 |
| Form | Sheet / Plate |
Description:
ISA (Indian Standard Angle) steel sections are L-shaped structural members
used in fabrication, framing, support structures, and trusses. Available in
equal and unequal dimensions, these angles offer excellent load-bearing
capacity and rigidity. Commonly used in industrial sheds, towers, bridges,
and machinery frameworks.
| Parameter | Specification |
|---|---|
| Size Range (mm) | 25x25x3 to 200x200x20 |
| Thickness (mm) | 3 – 20 |
| Length (m) | 6 / 9 / 12 (custom available) |
| Grade / Standard | IS 2062 E250 / E350, ASTM A36 |
| Type | Equal & Unequal Angles |
Description:
ISMB (Indian Standard Medium Weight Beams) are structural steel beams used
extensively in construction and fabrication. They provide excellent load
carrying capacity and rigidity for columns, girders, bridges, and industrial
structures. ISMB beams are designed for uniform bending strength and
reliability in medium to heavy applications.
| Parameter | Specification |
|---|---|
| Size Range (mm) | ISMB 100 to ISMB 600 |
| Width of Flange (mm) | 50 – 200 |
| Depth / Height (mm) | 100 – 600 |
| Thickness of Web (mm) | 6 – 20 |
| Grade / Standard | IS 2062 E250 / E350 / ASTM A36 |
| Length (m) | 6 / 9 / 12 (custom available) |
Description:

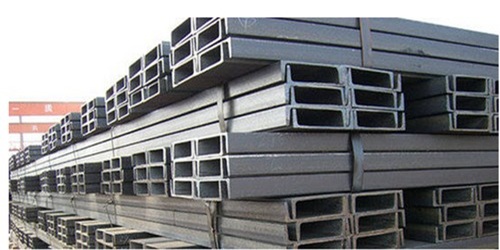

ISMC (Indian Standard Medium Weight Channels) are C-shaped structural steel
members used for beams, purlins, roof supports, and framing. They provide
high bending resistance and are ideal for medium-load structural
applications.
Both flanged and webbed channels are widely used in industrial sheds,
bridges, and heavy machinery supports.
| Parameter | Specification |
|---|---|
| Size Range (mm) | ISMC 75 to ISMC 400 |
| Width of Flange (mm) | 40 – 100 |
| Depth / Height (mm) | 75 – 400 |
| Thickness of Web (mm) | 5 – 20 |
| Grade / Standard | IS 2062 E250 / E350 |
| Length (m) | 6 / 9 / 12 (custom available) |
Description:

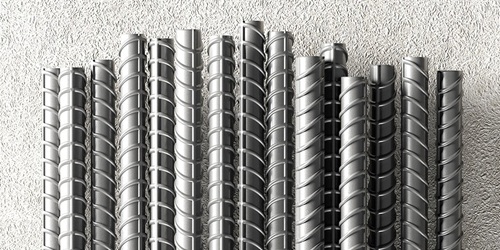

TMT Bars are high-strength reinforcement steel bars widely used in concrete
structures for buildings, bridges, and foundations. They are
thermo-mechanically
treated to improve tensile strength, ductility, and bending ability.
Available
in various grades and diameters, TMT bars ensure safety, durability, and
compliance with BIS standards.
| Parameter | Specification |
|---|---|
| Diameter (mm) | 8 – 32 |
| Length (m) | 12 / 16 / 20 (custom available) |
| Grade | Fe 415 / Fe 500 / Fe 550 / Fe 600 |
| Form | Round Bar / Coil |
| Standard | IS 1786 / BIS Certified |
Description:

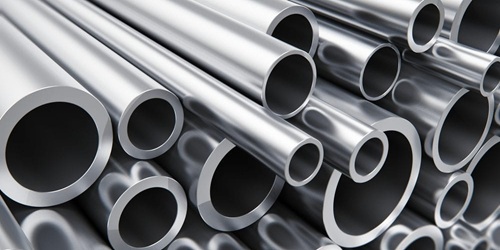

MS / ERW / Seamless Pipes are used for structural, mechanical, and
piping applications. ERW (Electric Resistance Welded) pipes are commonly
used
for low-pressure applications, while seamless pipes are preferred for
high-pressure and temperature-resistant systems. These pipes are used in
industries such as oil & gas, water pipelines, fabrication, and structural
frameworks.
| Parameter | Specification |
|---|---|
| Nominal Bore (NB) | 15 NB – 300 NB |
| Outer Diameter (mm) | 21.3 – 323.9 |
| Thickness (mm) | 2 – 20 (depends on schedule) |
| Length (m) | 6 / 12 (custom available) |
| Grade / Standard | IS 1239 / IS 3589 / ASTM A106 / IS 1239-1 |
| Form | Round Pipe, ERW Pipe, Seamless Pipe |
Description:

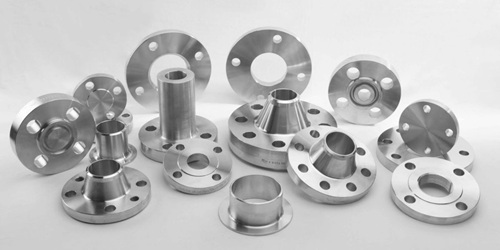

Slip-On Flanges are designed to slip over the pipe and then welded. They are
commonly used in low-pressure applications for easy alignment and
installation.
| Parameter | Specification |
|---|---|
| Size Range (inch) | 1/2" – 48" |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Thickness (mm) | As per ASME B16.5 / B16.47 |
| Material | MS / CS / SS 304 / SS 316 / Alloy Steel |
| Standard | ASME / ANSI / IS 6392 |
Description:

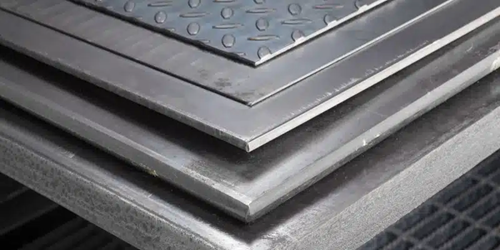

Flat Steel Sheets are versatile steel products used in fabrication,
structural
works, automotive, appliance manufacturing, roofing, and cladding. They are
available in hot-rolled, cold-rolled, galvanized, and stainless steel
variants.
These sheets offer uniform thickness, smooth surface finish, and high
strength for various industrial and construction applications.
| Parameter | Specification |
|---|---|
| Thickness (mm) | 0.5 – 50 |
| Width (mm) | 1000 / 1250 / 1500 / 2000 |
| Length (mm) | 2500 – 6300 (custom available) |
| Grade / Standard | IS 2062 / IS 1079 / ASTM A36 / SS 304 / SS 316 |
| Form | Hot Rolled / Cold Rolled / Galvanized / Stainless Steel Sheet |
